Radonix CNC Interface for Multi-Axis Machine Control

Interfaces

The “interface” is a specialized software environment that facilitates direct communication between the CNC control card and the operator, managing machine-specific commands and controls. Through Radonix CAM Pro, users can run interfaces designed for different CNC machines. This allows the operator to perform tasks in an optimized environment tailored to the technical specifications of the machine.

About Interfaces

The point where true customization comes into play is what we call the “interface.” An interface is a set of customized screens, commands, and workflows specifically designed for the capabilities and I/O (input/output) of a particular CNC machine. For example, “XYZ Plasma” is a plasma cutting solution that offers an interface tailored to plasma cutting parameters such as controlling cutting speed, torch height, and gas flow.

Each of these interfaces ensures that the operator only sees the tools and settings relevant to the machine in use. It eliminates clutter, optimizes workflow, and reduces the likelihood of errors. These specialized interfaces simplify the process by making CNC operation more intuitive and efficient, rather than forcing the user to navigate through generic options. The interface is a carefully crafted environment that brings together the specific functionality tailored to each machine’s unique requirements.

Interfaces List

Two Axis

2 Axis

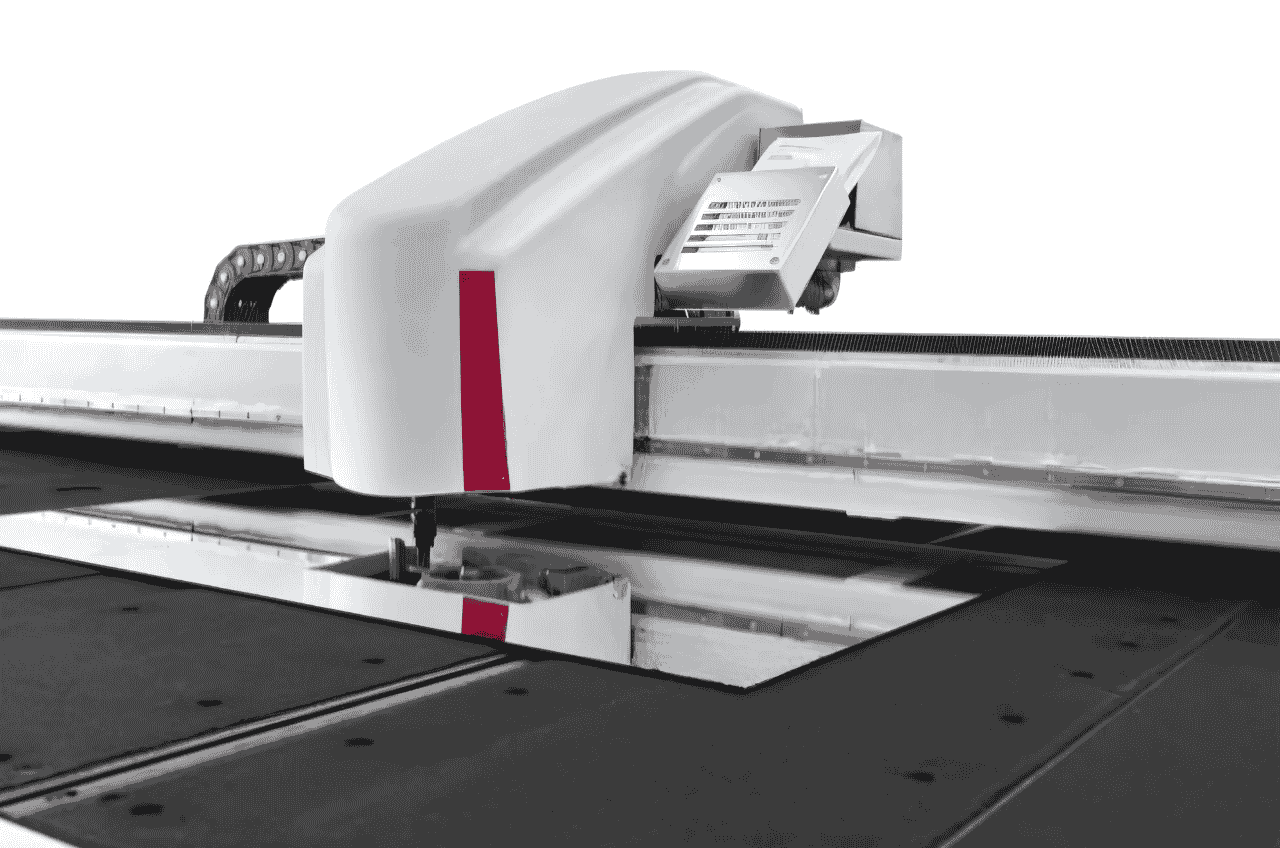

XY Cutter

For Cutting Machines

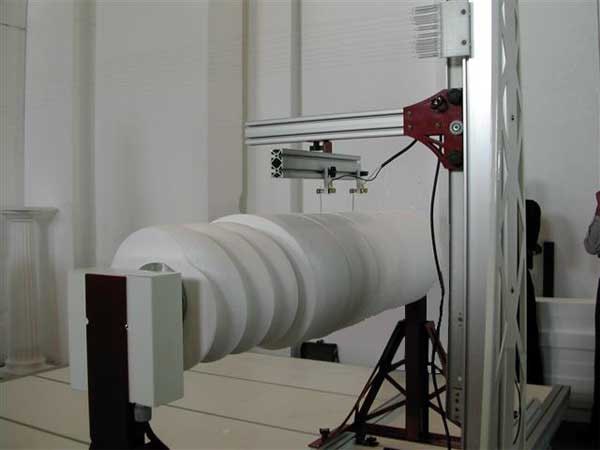

XY HotWire

For Plastic Cutting Machine

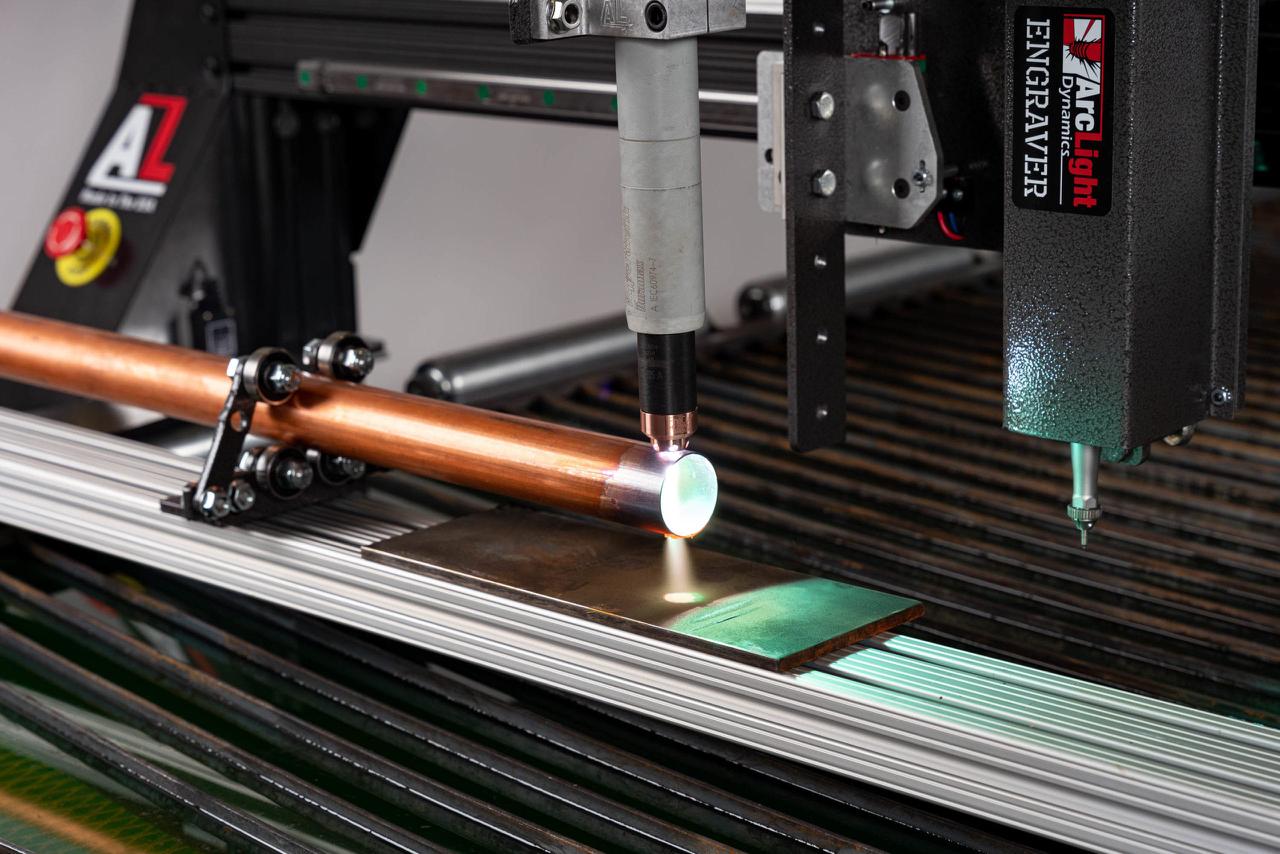

XY Pipe Cutter

For Pipe Cutting Machine

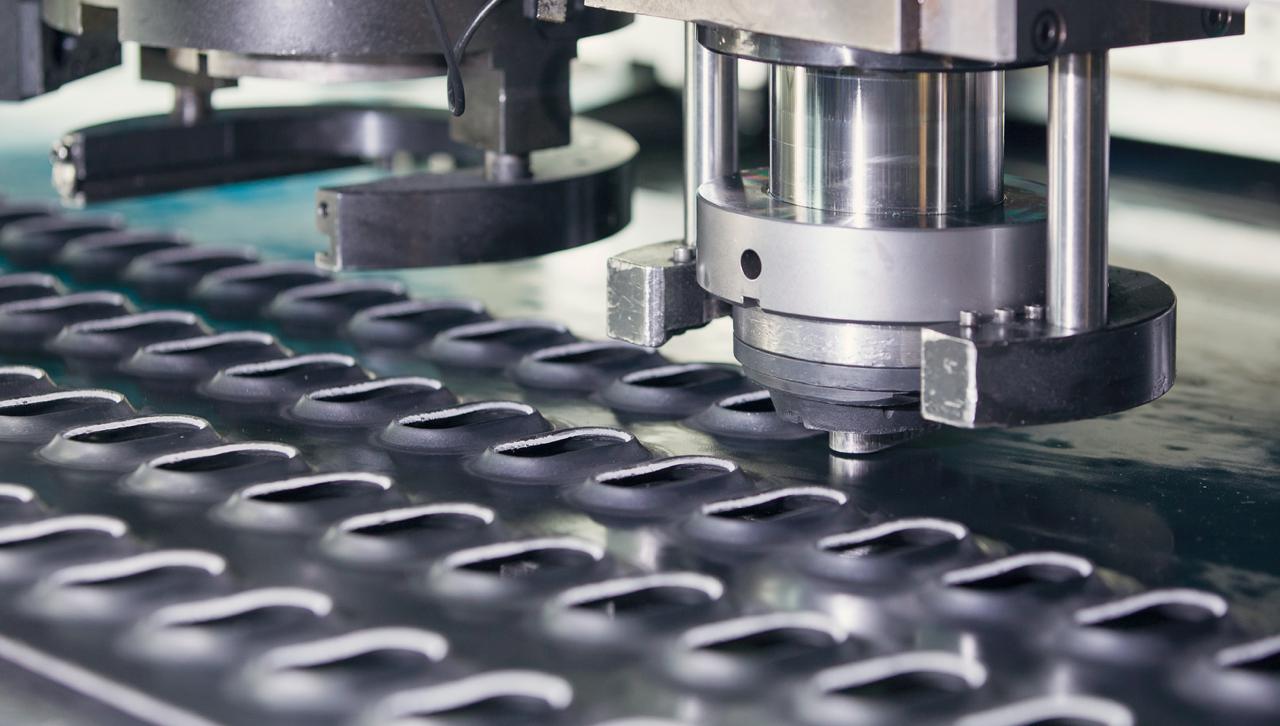

XY Punch

For Punching Machine

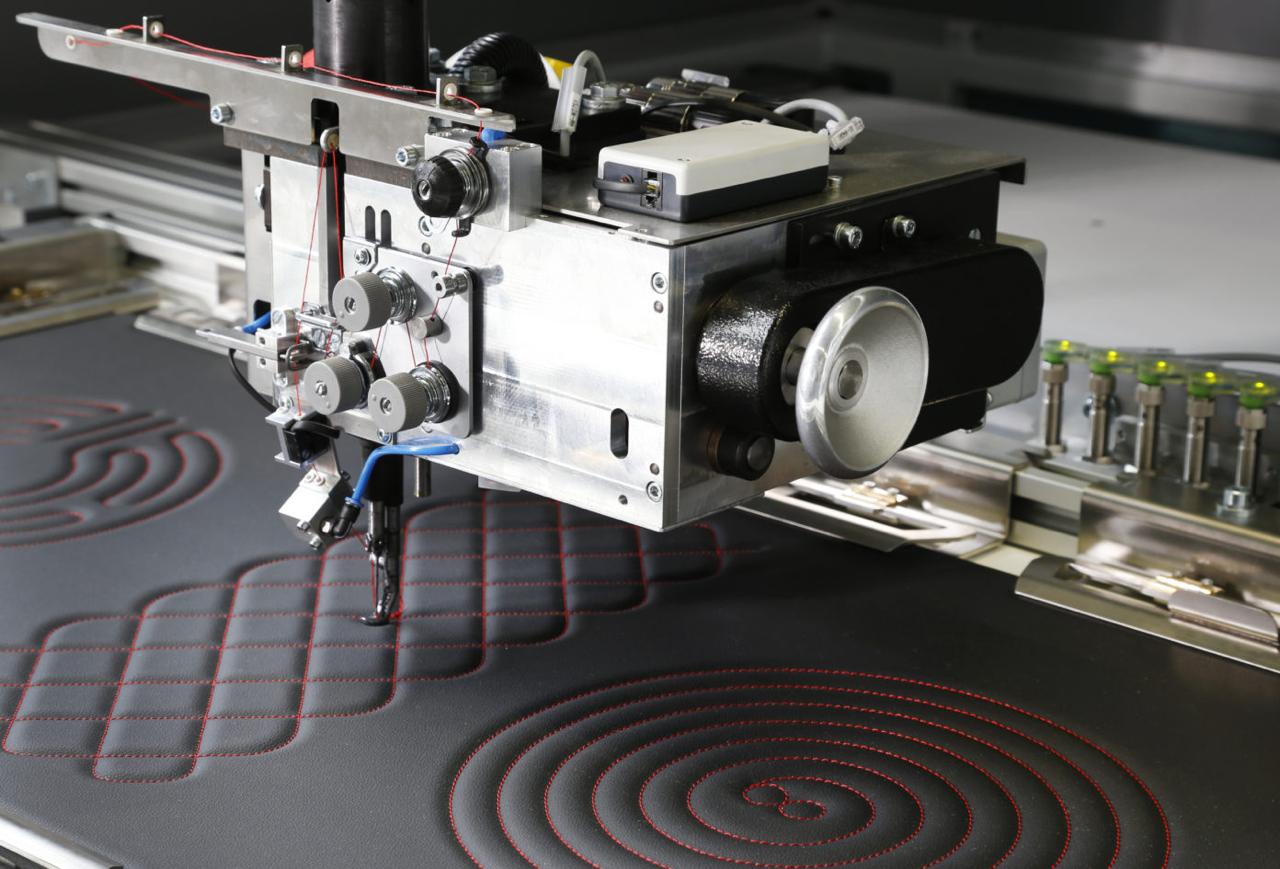

XY Sewing

For Sewing Machine

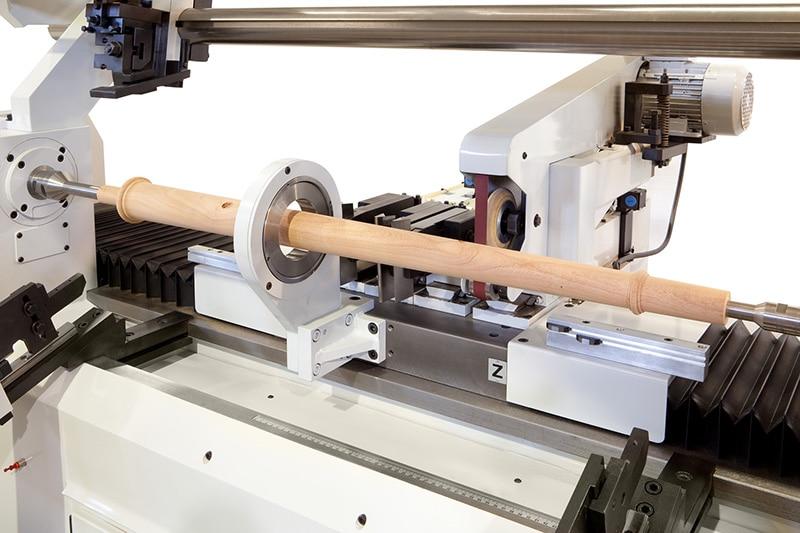

XZ Wood Turning

For Wood Lathe Machine

XZ Ring

For Milling

Three Axis

3 Axis

XYC SGCut

For Glass Cutting Machine

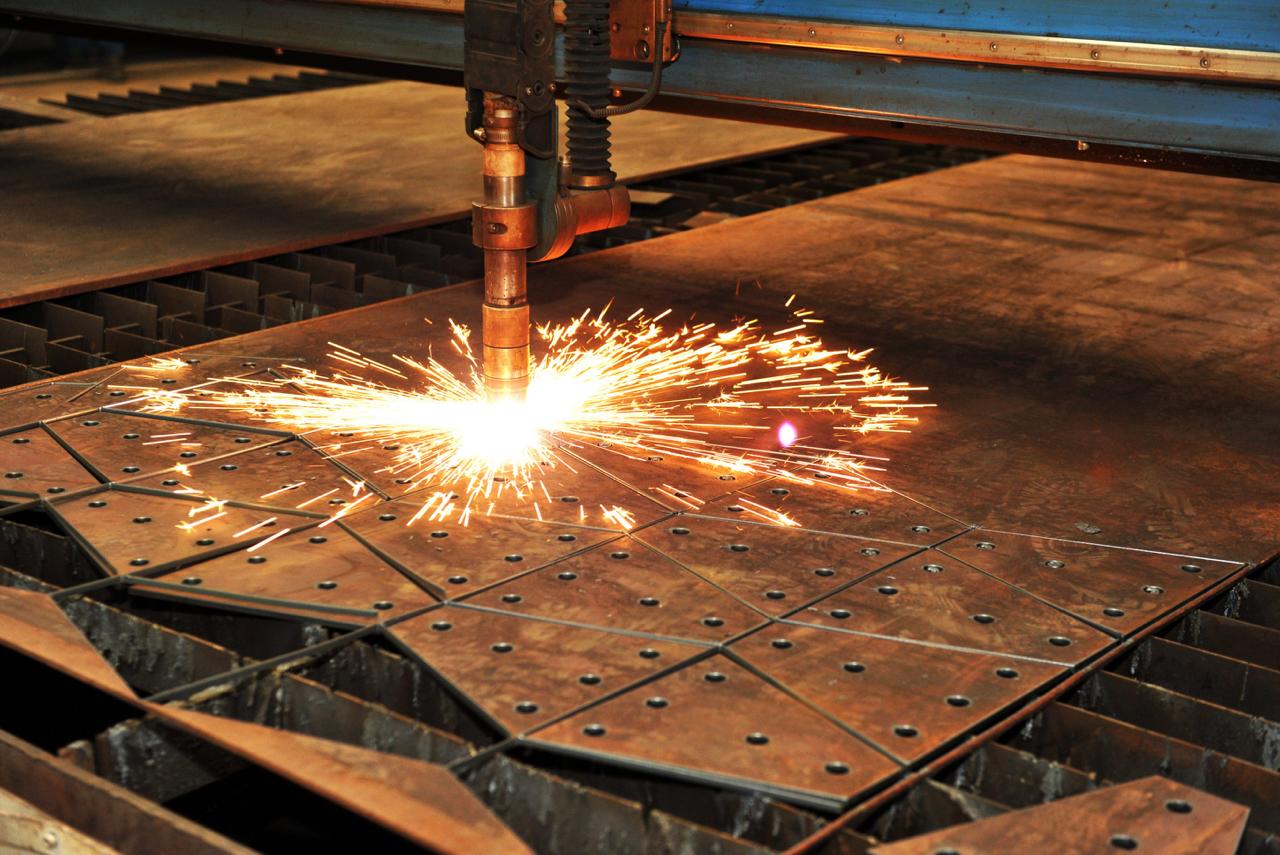

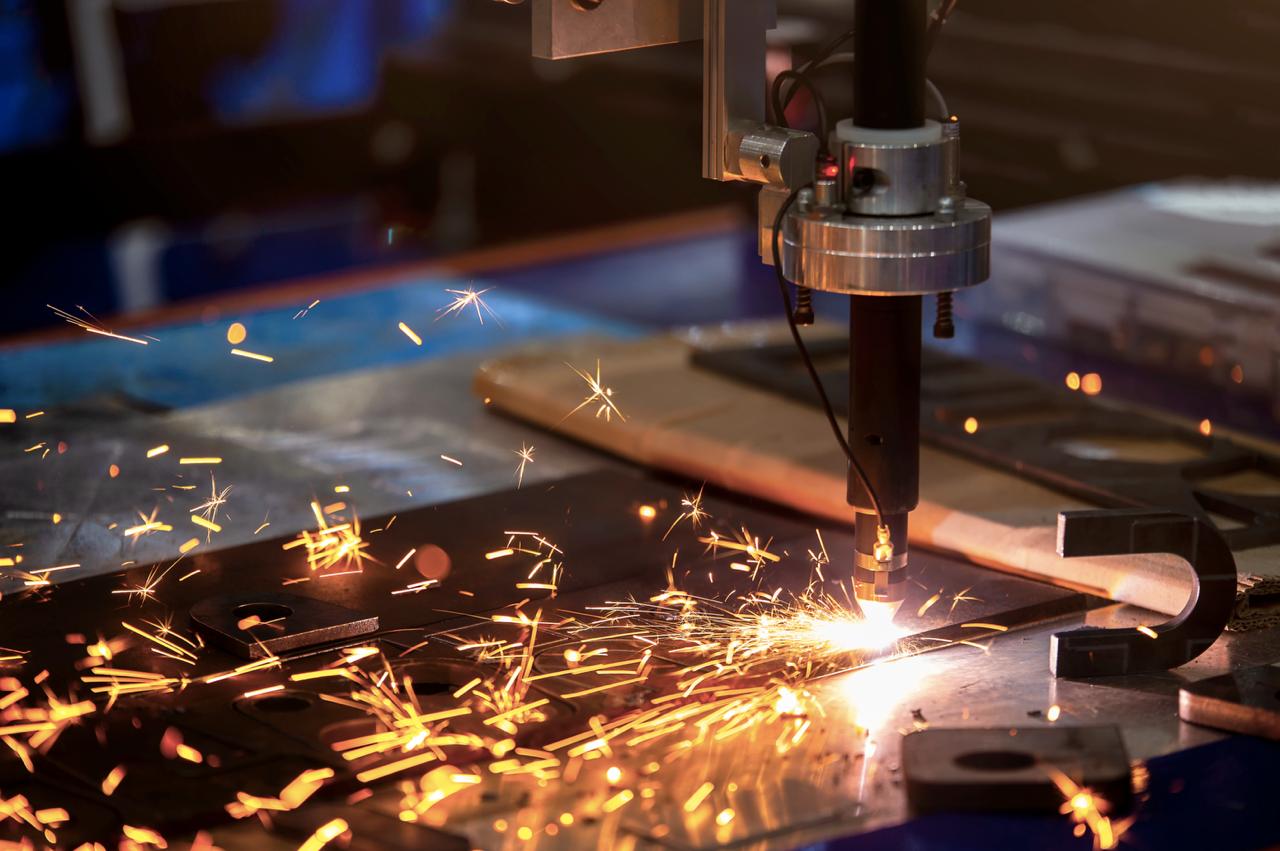

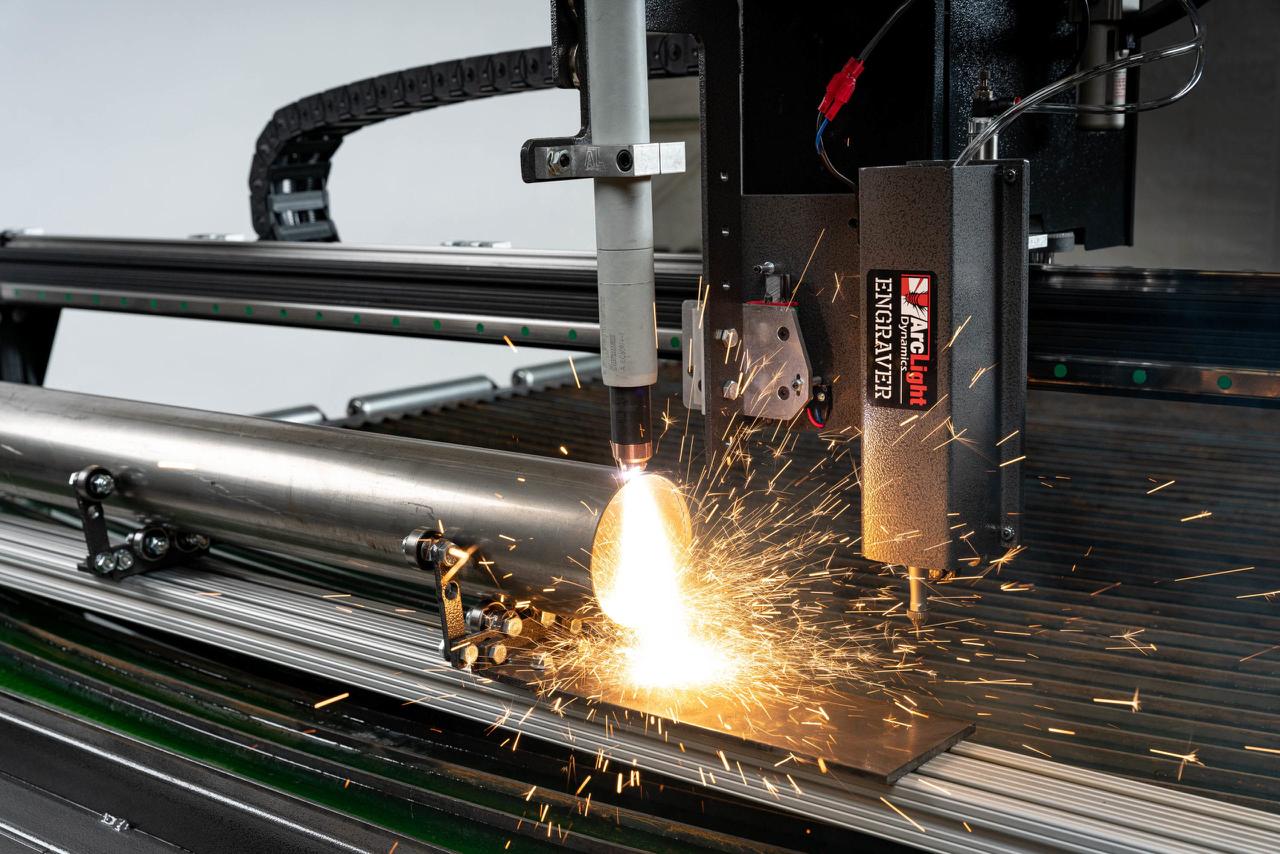

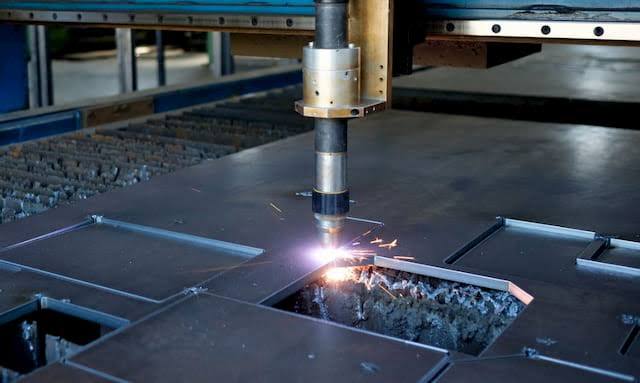

XYZ Plasma + Torch height Controller

For Plasma Cutting Machine

XYZ Cutter

For Cutting Machine

XYZ Pipe Cutter

For Pipe Cutting

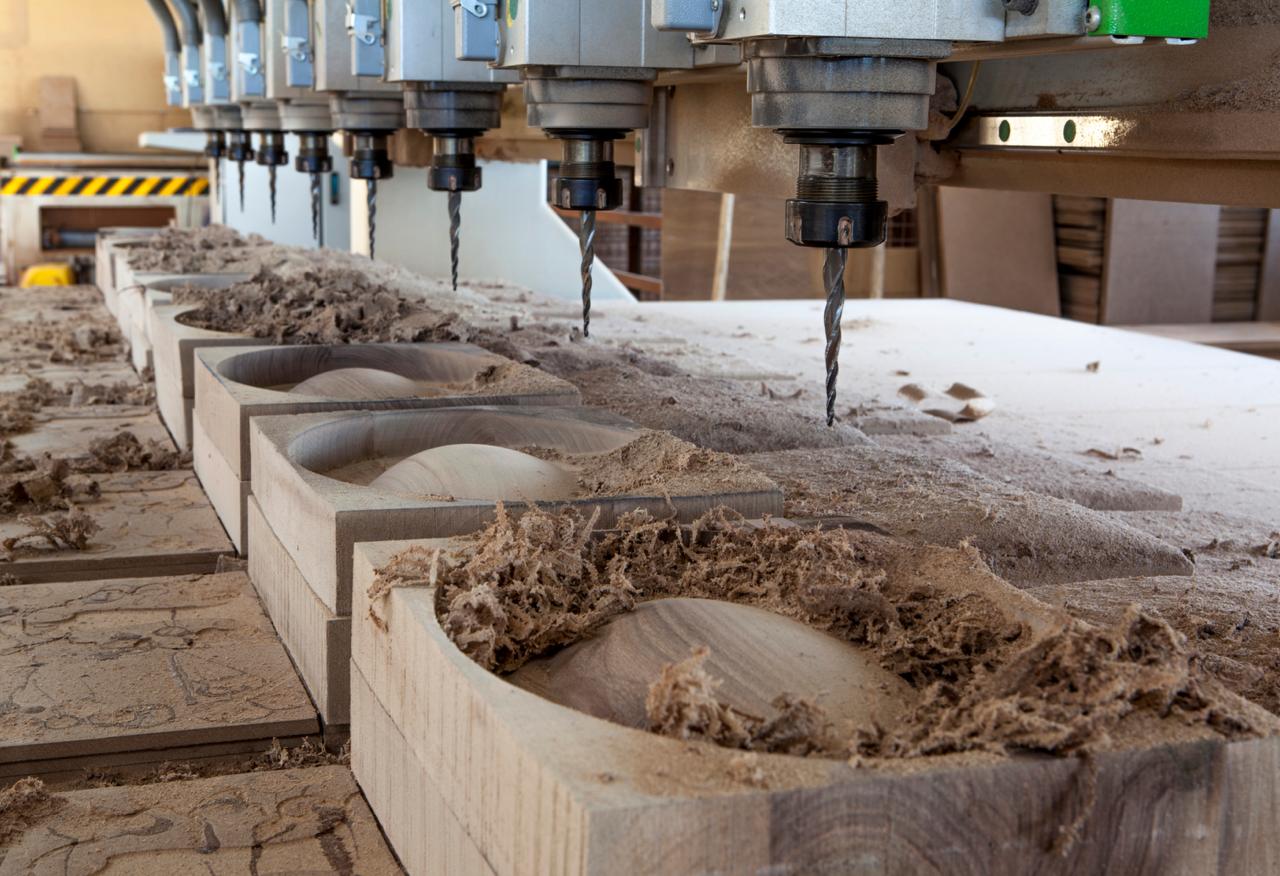

XYZ Router

For Router

XYZ Router TC

For Automatic Tool Changer Router

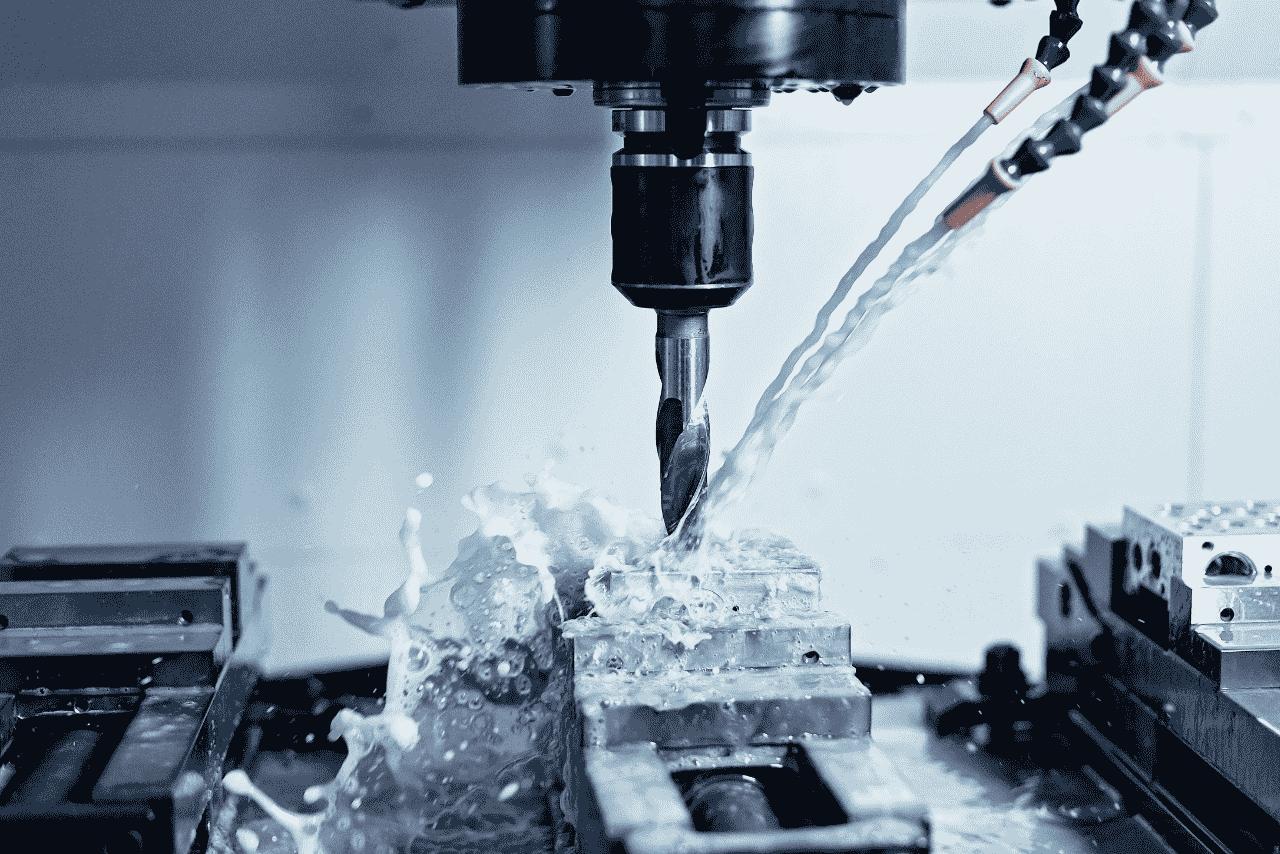

XYZ Simple Drill

For Drilling Machine

XYZ Water Jet

For Waterjet Cutting Machine

XZA Wood Turning

For Wood Lathe Machine

Four Axis

4 Axis

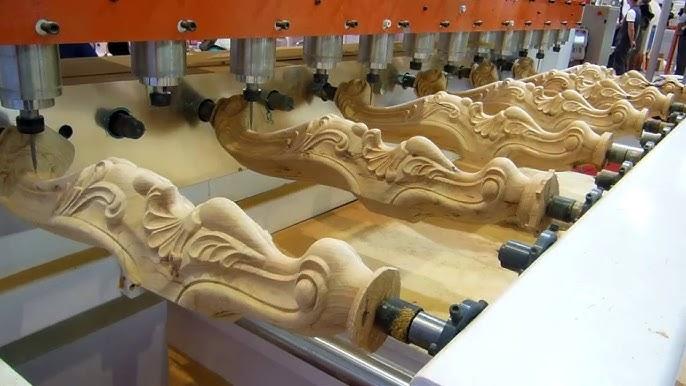

XYZA Router

For Rotary Machine

XYZA Profile Cut

For Profile Cutting Machine

XYAC Hammer

For Hammering Machine

Five Axis

5 Axis

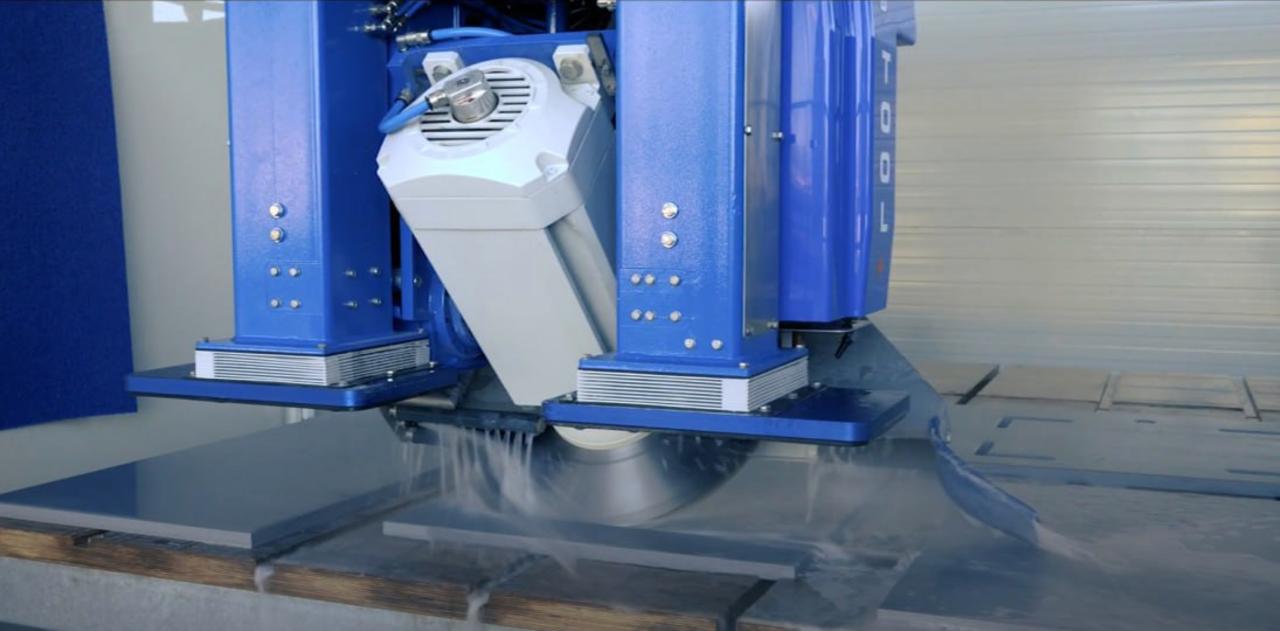

XYZCA Router LS

For Stone Cutting Machine (Disc Headed)

Six Axis

6 Axis

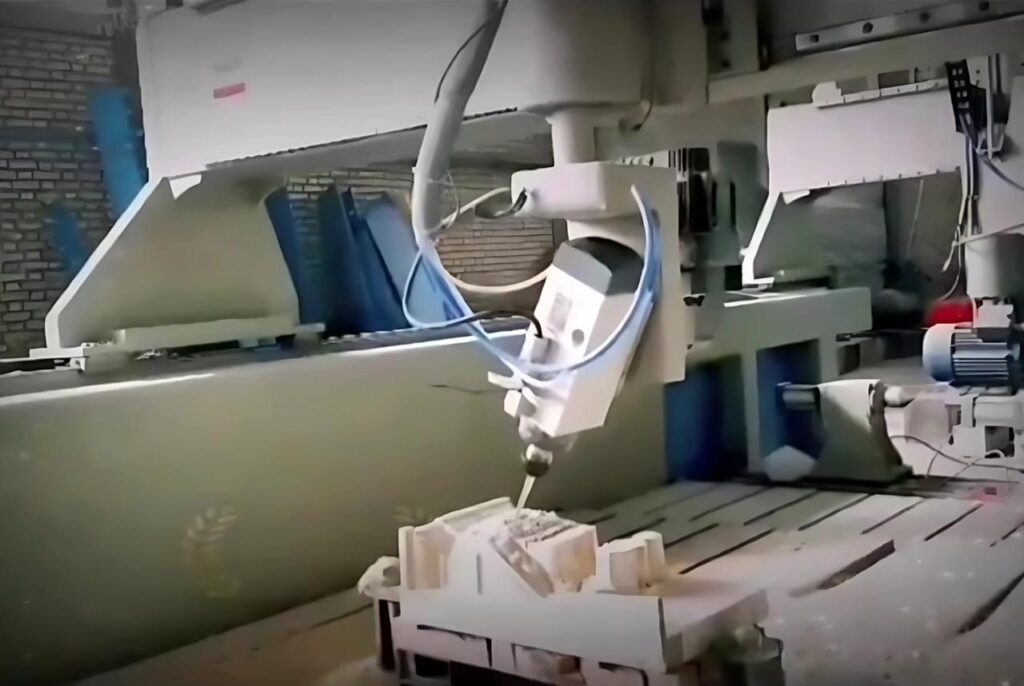

XYZABC Router

For Router Machine

Interface Types

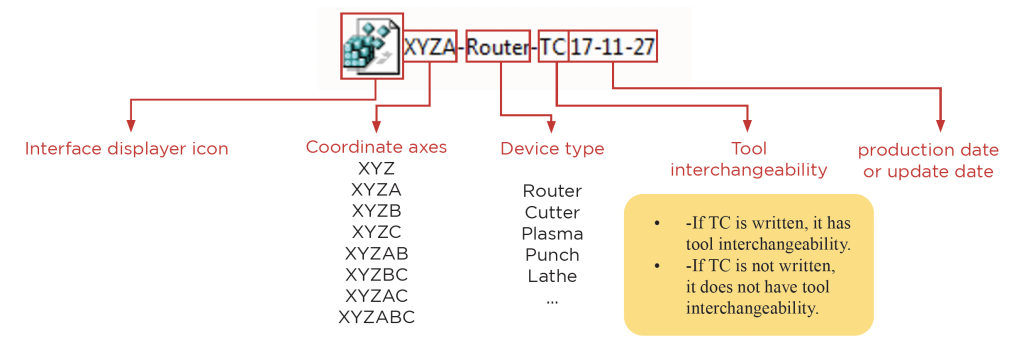

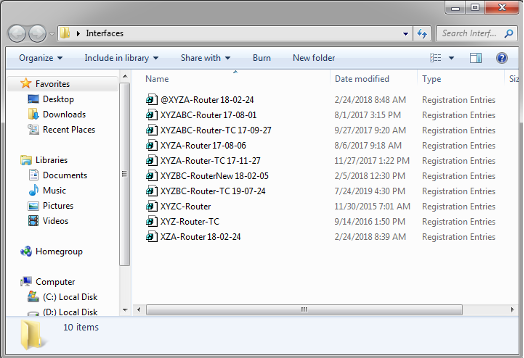

Interface files (in REG format) are downloaded and then run through our CAM Pro application. The interface name, number of axes, last update date, the machines it is used on, and any general features (e.g., tool changer) are specified. The designated photo includes detailed descriptions.

Custom Interface Requests

If you need a custom interface for a specific CNC setup that is not available in our current collection, please contact us. Our team is ready to design and provide a custom interface to meet your unique requirements.

Interface Access and Download

The point where true customization comes into play is what we call the “interface.” An interface is a set of customized screens, commands, and workflows specifically designed for the capabilities and I/O (input/output) of a particular CNC machine.For example, “XYZ Plasma” is a plasma cutting solution that offers an interface tailored to plasma cutting parameters, such as controlling cutting speed, torch height, and gas flow.

DOCUMENTATION

You can access detailed documentation for the interfaces.
