- 2-Axis
- Used in Cutting CNC machines
Introduction
One-line value prop: Smooth, accurate turning of balusters, columns, knobs, and custom profiles from DXF or templates—with guided setup, clean rough/finish passes, and safe spindle control.
Who uses it: Furniture and millwork shops, stair & railing makers, architectural décor, instrument and craft manufacturers, OEM woodworking lines.
Works with: 2-axis CNC wood lathes with a powered spindle (VFD) and linear X (radial) / Z (along bed) slides, single toolpost or dual tools.
Compatible controllers: PC-SMART 4A / PC-SMART 3AS / PC-PRO LAN 4A
Supported files: DXF profiles (revolve), standard G-code, built-in bead/cove/taper templates
Machine & Kinematics
X–Z slides track along a rotating workpiece; configurable work envelope, homing and soft limits for repeatable setups.
Supports chuck + tailstock (live center) with prompts; optional steady rest / follower support.
Fast origin tools (Home, X0, Z0) and per-axis jog (X±, Z±) for quick alignment to a hard stop or part face.
Control & I/O

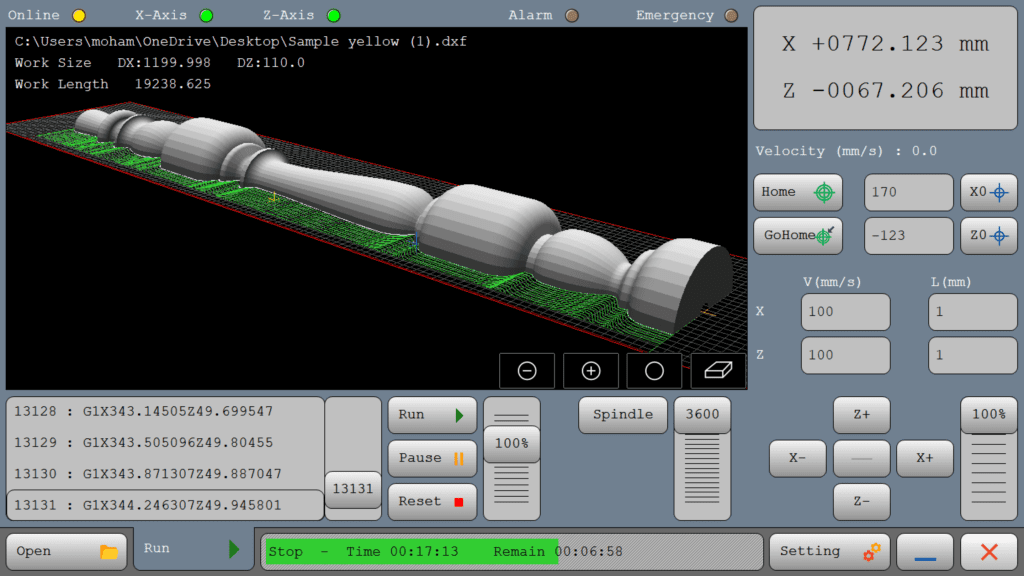

Big grid preview with red work boundary and live crosshair.
Absolute X/Z position boxes and Velocity (mm/s) display.
Home / GoHome buttons; numeric X0 / Z0 setters for zeroing.
V (mm/s) per-axis feed boxes and L (mm) step boxes for jog/increment moves.
Run / Pause ⏸ / Reset ⬛ controls and Speed 100% override slider.
Spindle panel with RPM setpoint (e.g., 3600) and ramp via slider.
E-stop chain and axis status indicators (X/Z LEDs).
Software & Workflow
Open your DXF/G-code and preview the revolved path on the grid.
Use V (mm/s) and L (mm) to set feed and step increments; set X0/Z0 directly from the right-hand panel.
Start the Spindle, then Run; adjust with the Speed % override.
Pause/Resume safely at any time; Reset returns control for re-zero or tool checks.
Status bar shows operation states (e.g., Home Done Z,X).
Key Capabilities
(at a glance)
Key Capabilities(at a glance)
DXF profile import (revolved) with on-screen preview
Simple, operator-friendly zeroing and jog with numeric steps
Spindle RPM setpoint with real-time override
Safe Run/Pause/Reset, Home/GoHome, and soft-limit handling
Job logging (time, stops/alarms, notes) for repeatability
Standard Workflow
Home X & Z, set X0/Z0.
Open DXF/G-code; verify preview.
Set feeds (V) and steps (L); set spindle RPM.
Run; adjust with Speed %; use Pause/Reset for checks.
Save notes/time for repeat jobs.
Typical Specifications
| Area | Spec |
|---|---|
| Axes | X radial, Z axial |
| Files | DXF (revolved), G-code |
| Feeds | Per-axis V (mm/s); override slider |
| Jog/Step | L (mm) increments, X± / Z± keys |
| Spindle | VFD run/stop, RPM setpoint & ramp |
| Safety | Home/limit pins, door/guard, E-stop |
| Settings | G54 reference, feed/jog steps, max feeds, keep-location |
Upgrade path
Need rotary control on your lathe? Choose XZA Lathe—adds A-axis indexing/rotation synchronized with X–Z for helical cuts, fluting, and multi-face features.
Key Features of Radonix CNC Software
🔹 Direct DXF Execution
Seamlessly load and execute DXF files without the need for G-code conversion — streamlining your workflow and reducing setup time.
🔹 Smart Component & Path Management
Select specific parts from complex drawings and customize cutting order with intuitive control over toolpath sequencing.
🔹 Interactive On-Screen Editing
Scale, rotate, and mirror parts directly within the interface — with live toolpath previews to ensure precision.
🔹 Flexible Part Placement
Manually drag and drop parts onto your material sheet to accommodate irregular shapes, pre-cut stock, or remnant reuse.
🔹 Advanced Pause Controls
Set up to three independent pause points — before the cut, during the cut, and after the cut — for manual checks or operational adjustments.
🔹 Reverse Cutting Mode
Execute toolpaths in reverse to minimize material warping or adjust final exit points based on design needs.
🔹 Simulation / Demo Run Mode
Perform a complete motion test without activating the torch. Ideal for verifying the toolpath before live cutting.
🔹Display of the final workpiece in three dimensions.
Real-time 3D view of the revolved part so operators can confirm shape and dimensions—and spot issues—before cutting.
🔹Ability to select the loading direction in the forward, backward, or both directions.
Choose forward, backward, or both (zig-zag) passes to match your setup and optimize cycle time and finish.
