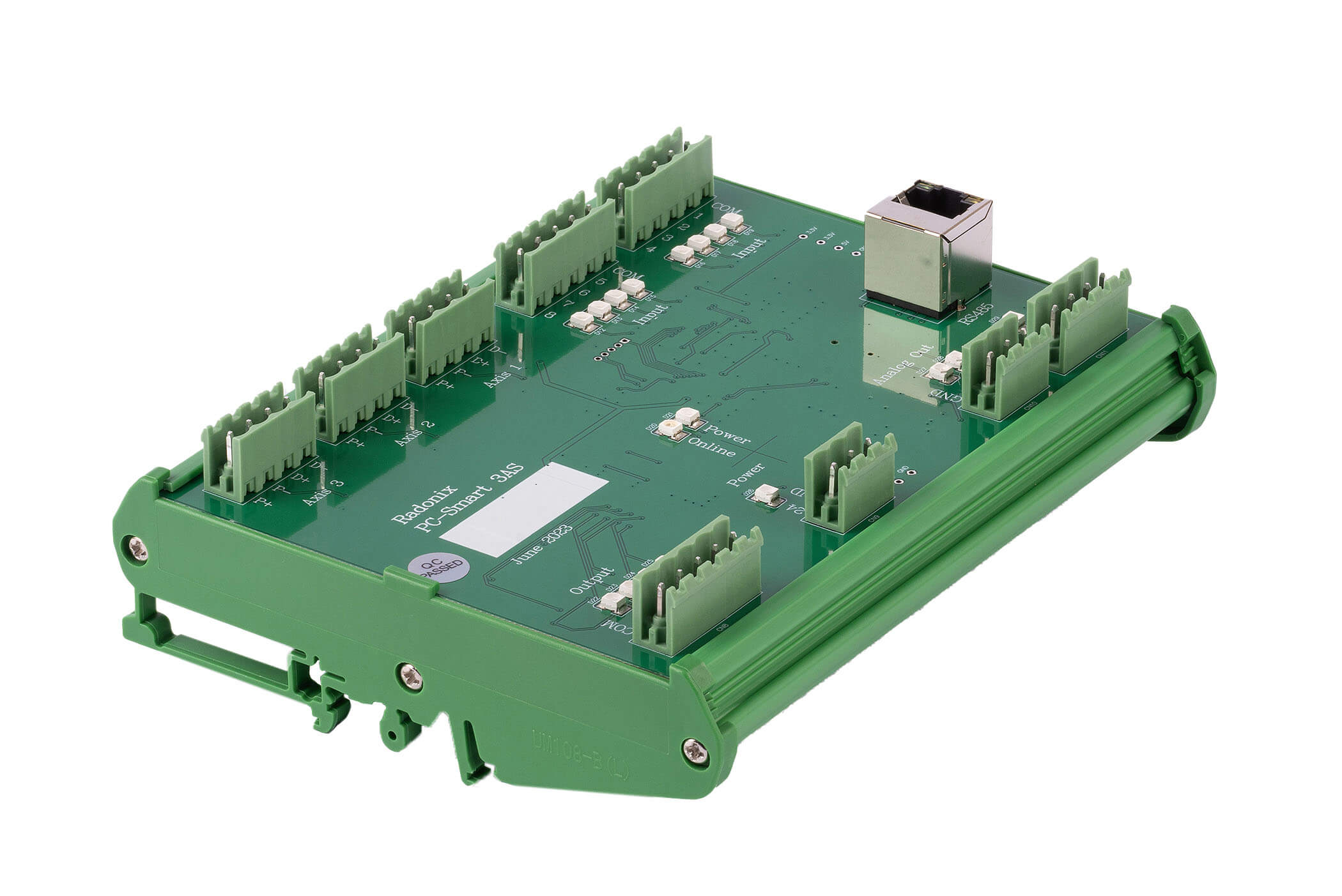

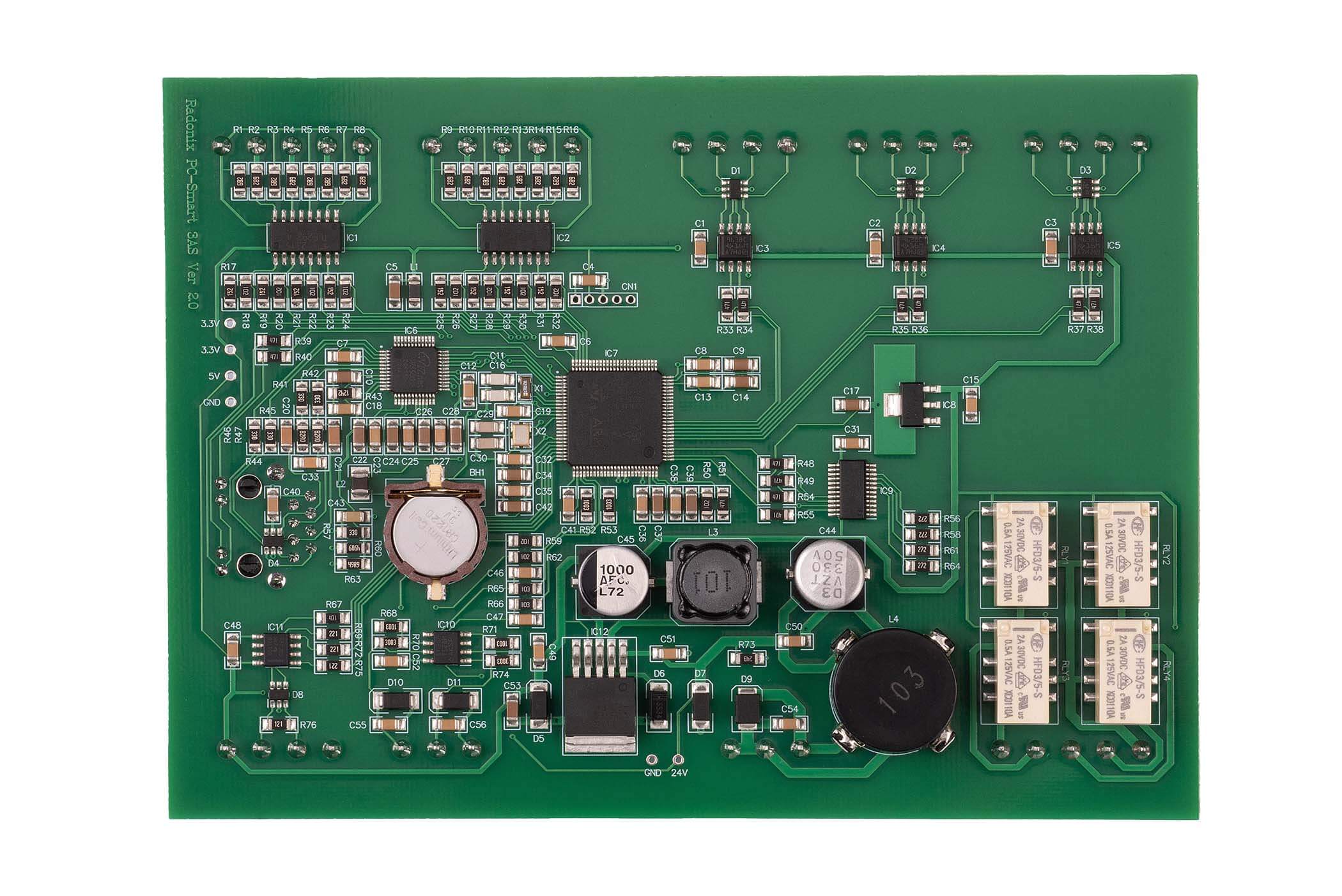

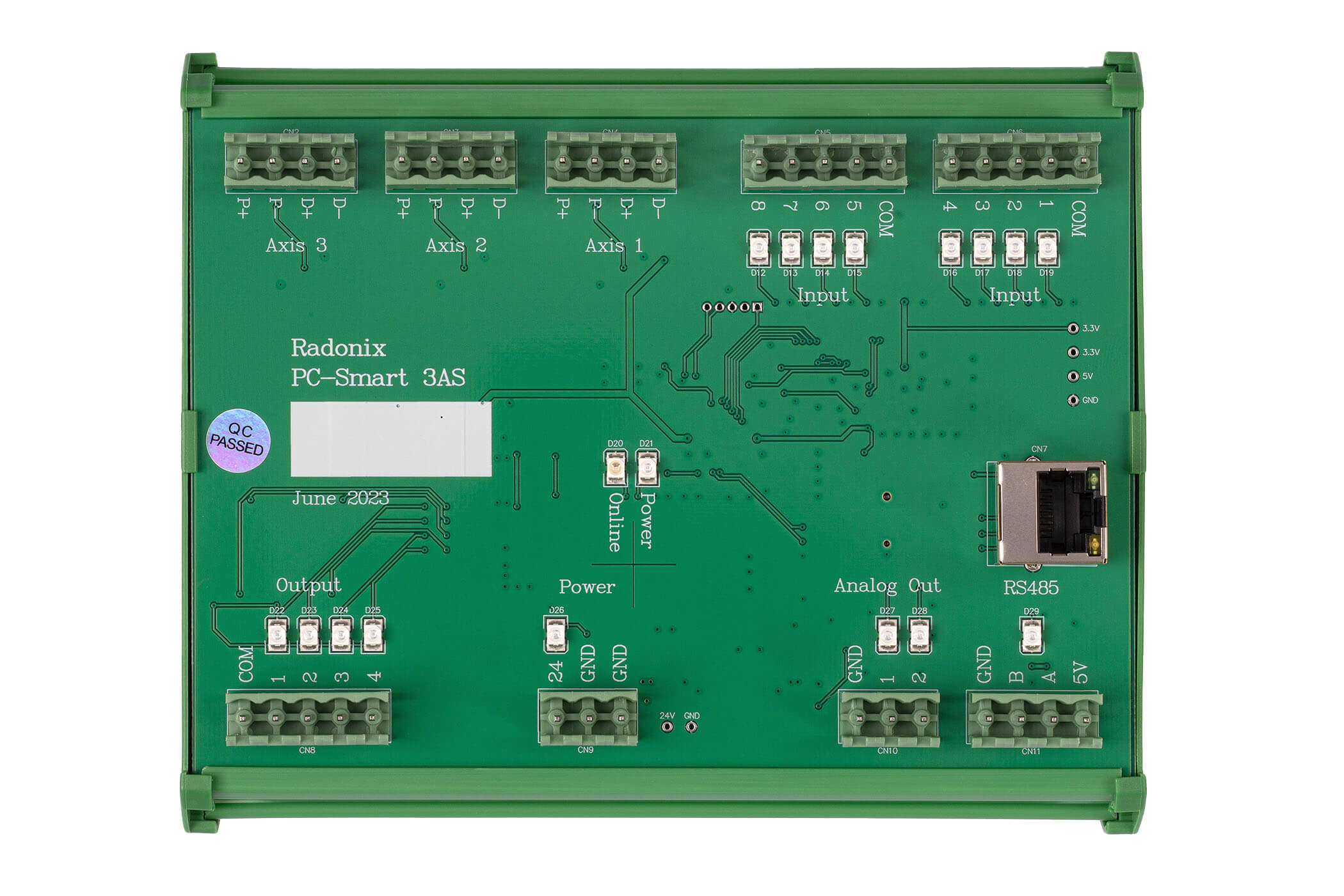

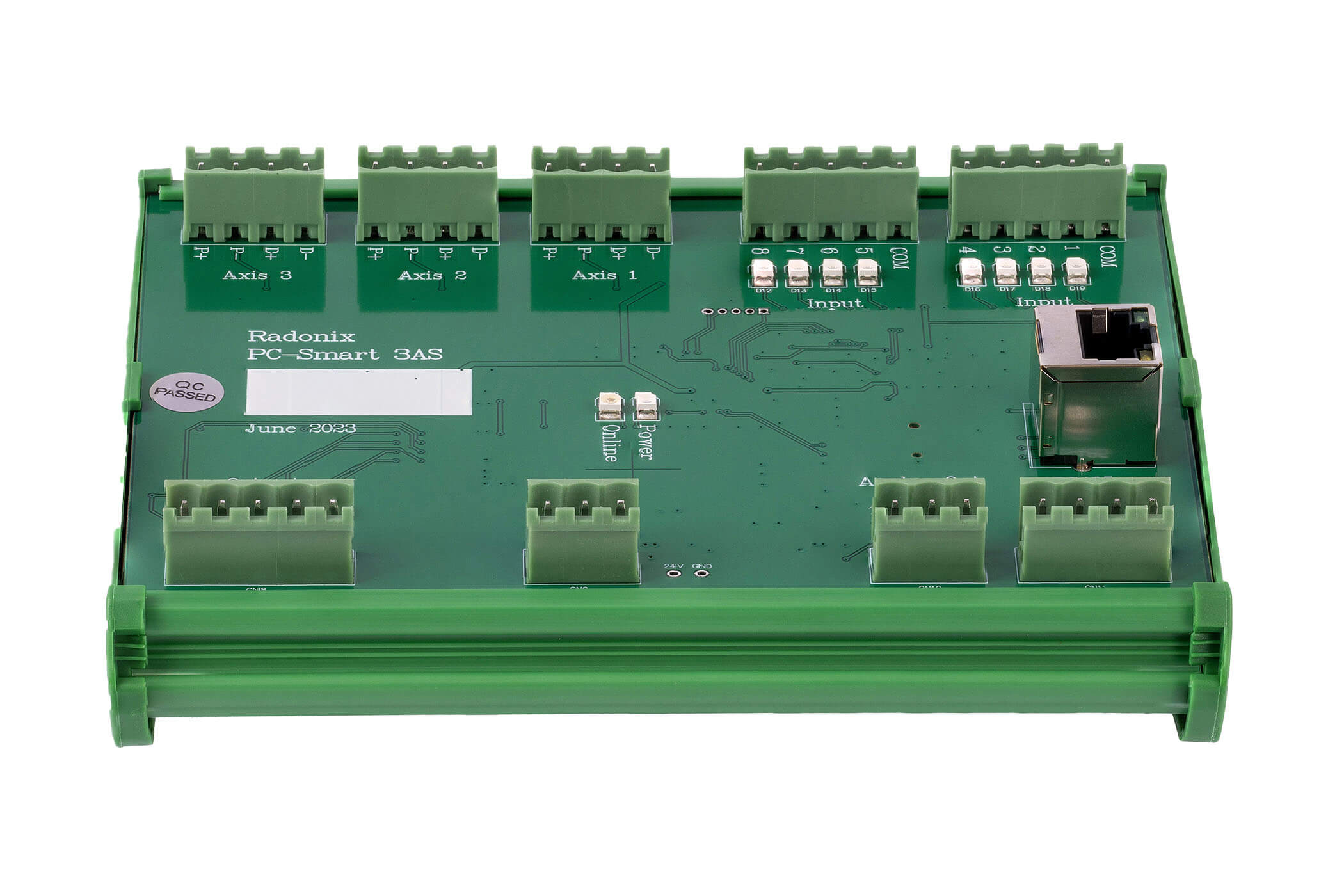

PC Smart 3AS

Our 3-axis CNC control card is specifically designed for servo motors. This high-performance device is optimized for demanding industrial environments that require precision and operational reliability.

Number of Axes

3 Independent and Interpolated Axes

GET A QUOTE
  • 2-Year Warranty
  • 10-Year After-Sales Service
  • 24/7 Support
Features
FeatureSpecification
Axes3 Interpolated and Independent
Digital Inputs (PNP/NPN, Isolated)8 Units
Digital Outputs (PNP/NPN, Protected)4 Units
Relay OutputUp to 1 Amp Current
Analog Outputs2 Protected (0 – 10 Volts)
Pulse Rate100,000 (pulses/sec)
Axis Pulse TypePulse/Direction
Acceleration TimeFrom 50 to 30,000 (mm/s²)
Speed ProfileS-Curve
Hardware Buffer Size2,000 Block FIFO
PC-Control Unit Data Exchange Time20 milliseconds
Isolation TypeOptocoupler
Communication TypeLAN at 100 Mbps (TCP/IP)
Communication DistanceMore than 20 meters with UTP / More than 50 meters with SFUTP
Hardware Lock24 Time Locks Adjustable with Internal Clock
Power Consumption12-24V, 300mA
Dimensions15 x 13 cm
Control TypeOpen-Loop Control
Operating SystemWindows 7, 8, 10, 11
Supported EquipmentHandwheel, Remote Control, Joystick
Detailed Information

Axes

With a 3-axis interpolated and independent structure, precise motion control is ensured for your device. This feature helps achieve accurate results even in complex applications.

Digital Outputs

The 4 protected digital outputs allow you to safely control your loads. With PNP and NPN compatibility, these outputs enhance system flexibility and provide a wide range of applications.

Communication

With a 100 Mbps LAN (TCP/IP) connection, you can easily integrate your device into your network. It ensures reliable communication even at distances of up to 50 meters.

Compatible Operating Systems

The device supports Windows 7, 8, 10, and 11 operating systems. With broad compatibility, it can seamlessly integrate with various computer systems.

Digital Inputs

The 8 isolated digital inputs support both PNP and NPN signals. This feature ensures seamless integration with various industrial applications while maintaining electrical isolation for enhanced safety.

Analog Outputs

With 2 protected analog outputs (0-10V), you can send precise voltage signals to your system. This feature facilitates motor speed control and seamless integration with analog devices.

Hardware Lock – Maximum Security

With 24 time locks adjustable via the internal clock, you can configure your machine to operate or deactivate after a specified period, ensuring enhanced security and controlled usage.

Radonix PC Smart 3AS – CNC Control Card & Industrial Automation Solution

 Radonix PC Smart 3AS Product Introduction

Radonix PC Smart 3AS is the latest addition to Radonix’s innovative hardware portfolio, offering superior performance, high precision, and efficient control for modern CNC machines.

Key Features:
3-axis control
Compatibility with pulse/direction motors
Digital input/output and analog output
RS485 communication
Applications:

Radonix PC Smart 3AS can be used in various industrial automation applications with CNC machines in stone, wood, glass, ceramics, textiles, plastics, and composite industries.
