PC-Pro LAN 4A

A compact PC-based CNC control card capable of controlling 4 axes simultaneously. It offers a speed of up to 500,000 pulses per second.

Number of Axes

4 Independent and Interpolated Axes

GET A QUOTE
  • FREE SHIPPING
  • 10-Year Warranty
  • 24/7 Support
Features
Feature Specification
Axes 4 Interpolated and Independent
Digital Inputs (PNP/NPN, Isolated) 24 Units
Digital Outputs 16 open-collector outputs with short-circuit protection
Analog Outputs (Protected) 2 Units (0 – 10 Volts)
PWM Outputs (Adjustable Frequency) 2 Units (0 – 5 Volts)
Axis Pulse Speed 500,000 (pulses/sec)
Axis Pulse Type Pulse/Direction
Acceleration Time From 50 to 30,000 (mm/s²)
Speed Profile S-Curve
Hardware Buffer Size 2,000 Block FIFO
PC-Control Unit Data Exchange Time 20 milliseconds
Isolation Type Optocoupler
Communication Type LAN at 100 Mbps (TCP/IP)
Communication Distance More than 20 meters with UTP / More than 50 meters with SFUTP
Hardware Lock 24 Time Locks Adjustable with Internal Clock
Power Consumption 16 – 32 volts – 300 milliamps
Dimensions 25 x 13 cm
Control Type Open-Loop Control
Operating System Windows 7, 8, 10, 11
Supported Equipment Joystick, Remote Control, Handwheel

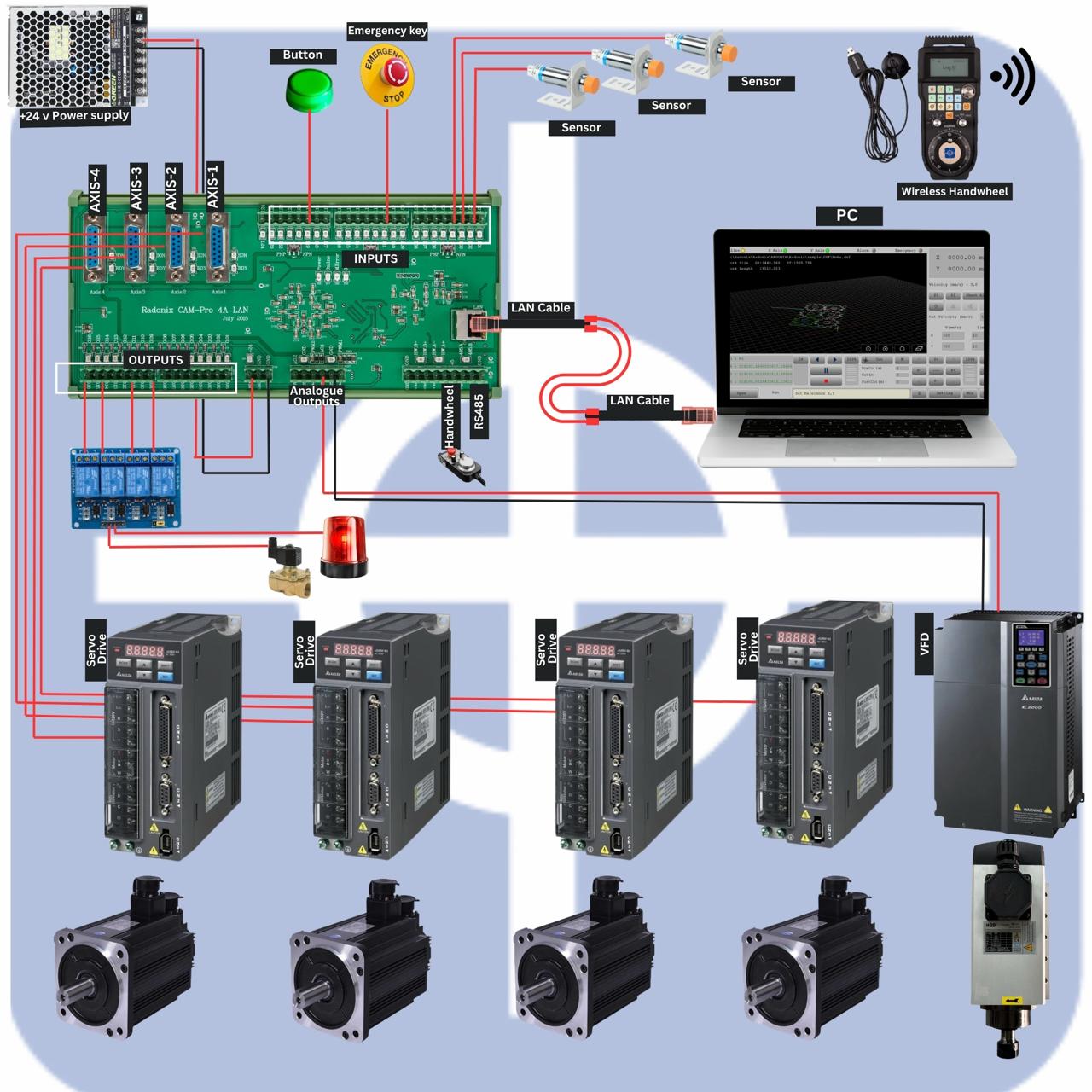

Detailed Information

Axes

The PC Pro LAN 4A can control 4 independent and interpolated axes.

Digital Outputs

The 16 protected digital outputs allow you to safely control your loads. With PNP and NPN compatibility, these outputs enhance system flexibility and offer a wide range of applications. The high number of outputs enables the control of more complex systems, making it ideal for advanced industrial automation.

Axis Pulse Type

Support for pulse/direction (pulses per step) signaling ensures precise and stable axis movement control. In this method, each pulse signal represents a single step of movement, while the direction signal determines the motion direction. This control approach is widely used in stepper motor and servo motor applications.

Speed Profile (S-Curve)

The S-Curve speed profile optimizes acceleration and deceleration processes, smoothing sudden movements in the mechanical system. This feature reduces vibrations and extends the lifespan of system components.

Digital Inputs

The 24 isolated digital inputs support both PNP and NPN signals. This feature ensures seamless integration with various industrial applications while maintaining electrical isolation for enhanced safety. The high number of inputs allows for connecting more sensors and devices, increasing system flexibility.

Axis Pulse Speed

With a 500,000 pulses/sec speed, the device ensures accurate signal transmission even in high-frequency applications. This high-speed capability provides a significant advantage in applications requiring fast and precise motion control.

Acceleration Time

Adjustable acceleration time from 50 mm/s² to 30,000 mm/s² allows you to create customized acceleration and deceleration profiles for your system. Proper acceleration settings reduce mechanical wear and enhance motion control efficiency.

Hardware Buffer Size (FIFO)

The 2,000-block FIFO (First-In-First-Out) buffer ensures a continuous and smooth data flow. This capacity enhances system performance in high-data-flow applications and guarantees that commands are processed in order without interruption.

Radonix PC Pro LAN 4A – CNC Control Card & Industrial Automation Solution

Radonix PC Pro LAN 4A Product Introduction

Radonix PC Pro LAN 4A is the latest addition to Radonix’s innovative hardware portfolio, offering superior performance, high precision, and efficient control for modern CNC machines.

Key Features:
4-axis control card
Compatibility with pulse/direction motors
Digital input/output, analog, and PWM outputs
Applications:

Radonix PC Pro LAN 4A can be used in various industrial automation applications with CNC machines in stone, wood, glass, ceramics, textiles, plastics, and composite industries.
