Lego

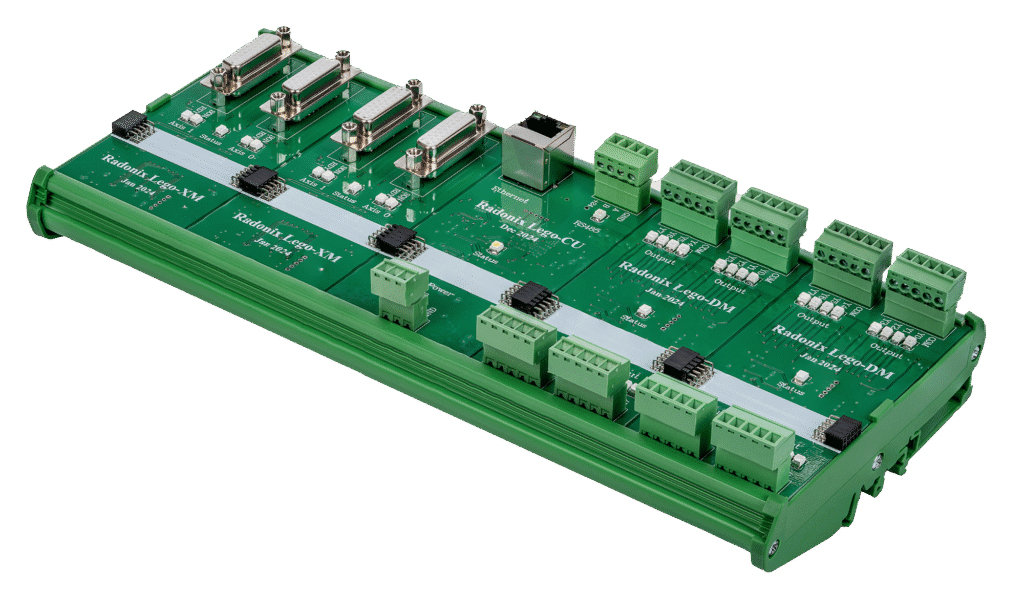

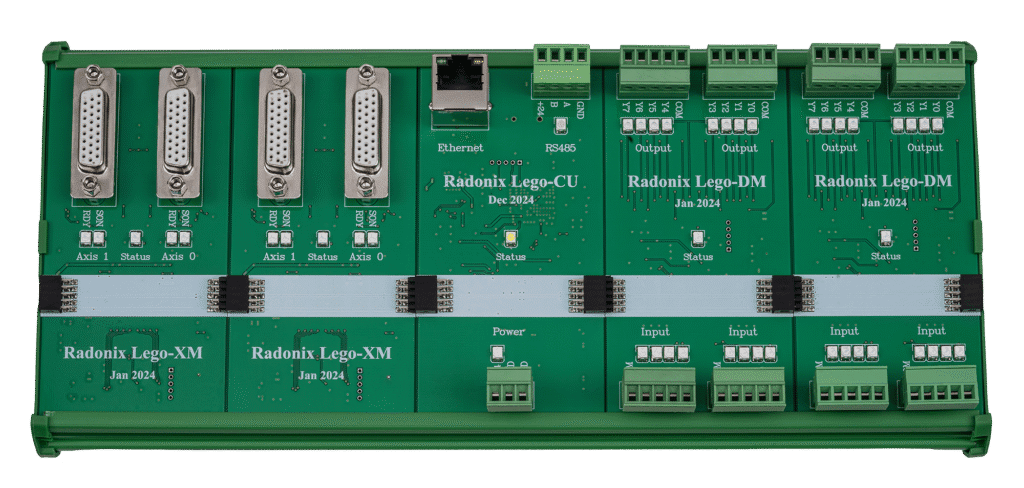

Radonix Lego is a fully modular CNC control system comprising a Control Unit (Lego-CU), 2-Axis Modules (Lego-XM), and Configurable Digital I/O Modules (Lego-DM). Instantly add or remove axes and I/O to match your exact needs—never pay for unused capacity.

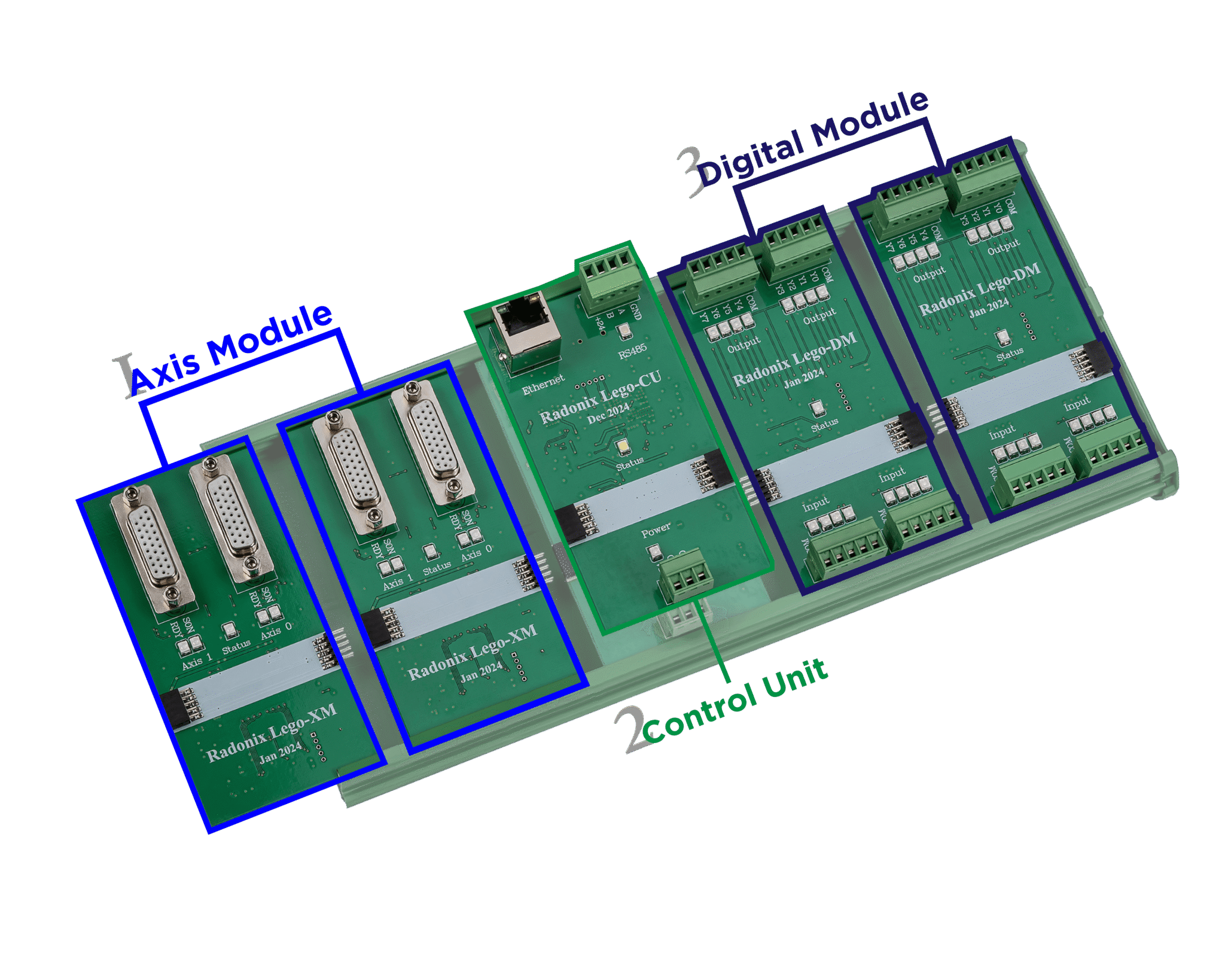

Modules & Key Features
1. Axis Modules (Lego-XM)
- Per module: 2 independent motion axes
- Maximum: 8 modules ⇒ 16 total axes
- LED indicators: “Status” + “Step/Dir” per axis
- Installation: Slide onto DIN-rail, auto-addressing over the backplane
2. Control Unit (Lego-CU)
- Role: Coordinates all modules and provides Ethernet/TCP-IP link to PC
- Power & bus: 18–30 V supply, DIN-rail bus for data and hot-swap detection
3. Digital I/O Modules (Lego-DM)
- Standard Configuration: 8 opto-isolated inputs (X0…X7) + 8 switchable outputs (Y0…Y7)
- Maximum: 8 modules ⇒ 64 inputs / 64 outputs
- Flexible Assignment: firmware-configurable pin-to-pin I/O mapping, active-high/low selection, debounce (1–50 ms)
- Protection: short-circuit current limiting with automatic reset
- LEDs: per-channel status indicators + overall health LED
| Setup | Axes | I/O | Use-Case |
|---|---|---|---|
| 1 XM + 1 DM | 2 axes | 8 in / 8 out | 3-axis router + basic sensors |
| 2 XM + 2 DM | 4 axes | 16 in / 16 out | Compact pick-and-place line |
| 4 XM + 4 DM | 8 axes | 32 in / 32 out | Medium-sized machining center |
| 8 XM + 8 DM (max.) | 16 axes | 64 in / 64 out | Fully automated production line |
