1. Development of Multi-Axis CNC Controllers
The evolution of multi-axis CNC machines has been driven by the need to enhance efficiency and precision in industrial production. In the 1950s, early CNC machines were limited to basic 2-axis movements. However, with advancements in technology, machines have expanded to include 3-axis, 4-axis, 5-axis, and eventually 6-axis versions. This progression has paralleled industrial production demands and increased machine complexity. Today, multi-axis CNC machines offer not only linear movements but also rotational capabilities, providing significant advantages in processing more complex and precise parts.
1.1 Role of CAD/CAM Software
A pivotal moment in the evolution of multi-axis CNC machines was the integration of CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software. These tools enable the creation of designs in a digital environment and their transfer to machines for execution. CAD software allows engineers and designers to model complex parts in 3D, while CAM software translates these digital designs into machine-readable commands. CAM software coordinates each movement precisely by sending data to the machine’s control systems. The integration of CAD and CAM not only enhances efficiency during production but also reduces errors, enabling the rapid production of intricate and precise parts. These systems accelerate workflows on production lines and lower costs.
1.2 Digital Control and Artificial Intelligence
Advances in digital control systems have enabled machines to operate with greater precision, minimizing error margins. Digital control systems manage machine movements using electronic signals, allowing faster and more accurate operations compared to traditional mechanical systems. Furthermore, the integration of artificial intelligence (AI) technology allows machines to optimize efficiency and improve operational processes autonomously. AI algorithms analyze data from production lines to propose process optimizations and monitor machine performance in real-time. These developments significantly reduce the risk of manufacturing errors and enhance the efficient management of machine fleets.
2. Basic Principles of Multi-Axis CNC Controllers
Multi-axis CNC machines rely on control systems capable of coordinating movements across multiple axes (X, Y, Z, A, B, etc.) with high precision. Each axis operates according to a coordinate system, and synchronization between movements is essential. Modern CNC machines can perform not only linear but also rotational movements, enabling the precise machining of parts with complex geometries.

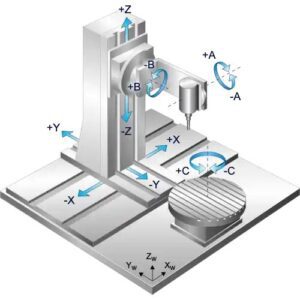

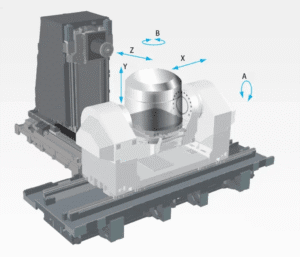

2.1 Coordinate System and Motion Control
Each axis in multi-axis machines operates within a specific coordinate system. These axes are typically supported by rotational axes such as A and B in addition to linear X, Y, and Z axes. For example, a 3-axis machine can only perform linear movements, while 5-axis machines also execute rotational movements along the A and B axes. These rotational movements are crucial for processing parts with complex geometries. CNC machines use advanced control algorithms to calculate and synchronize each axis’s movements accurately. Proper coordination of these movements ensures high precision during part production.
2.2 Synchronization and Dynamic Calculations
The synchronized operation of multiple axes is critical for ensuring the accurate and error-free functioning of multi-axis machines. Synchronization involves precise calculations of each axis’s speed, direction, and movement. Dynamic calculations are essential for real-time monitoring of machine movements and determining the position of each axis. CNC machines perform these calculations using digital signals, enabling real-time adjustments to movements. As a result, all axes operate harmoniously, allowing the production of parts in the desired shape and dimensions.
2.3 Digital Control and Feedback
Digital control systems continuously monitor every movement of the machines and provide real-time corrections through feedback mechanisms. This feedback mechanism enables even minor errors to be immediately corrected. For instance, a slight deviation on one axis is quickly detected, and the system issues a corrective command to minimize the error. This system maintains quality during production and prevents defective parts from being manufactured. Feedback also ensures the proper positioning of workpieces and prevents potential deformations during processing. Thanks to real-time data collection and processing capabilities, these systems ensure optimal operating conditions for consistent, high-quality production.
3. Applications of Multi-Axis CNC Controllers
Multi-axis CNC machines are widely utilized in the production of complex geometries and parts requiring high precision. These machines offer significant advantages in industrial manufacturing processes, allowing for more efficient, faster, and precise production, particularly due to their multi-axis movement capabilities. Below is a detailed analysis of the industries where multi-axis CNC machines are commonly used and their contributions to these sectors.
3.1 Aerospace Industry

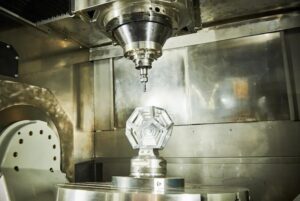

The aerospace industry is one of the primary sectors where multi-axis CNC machines are extensively used. Components in this sector require high durability, lightweight properties, and precision. Additionally, strict quality standards must be applied to ensure flight safety and performance. To meet these requirements, 5-axis CNC machines are widely employed.
Aerospace manufacturing often involves challenging materials such as titanium, aluminum alloys, and composites. Titanium, known for its high heat resistance and lightweight properties, is particularly challenging to machine. Hence, 5-axis machines are preferred for processing components with complex geometries with high accuracy. For instance, critical components like aircraft engines, wing structures, and spacecraft parts can be produced faster and with greater precision using 5-axis machines.
These machines also play a significant role in prototype production. They allow for low-volume production of new designs and components, enabling the aerospace industry to rapidly test innovative solutions. During mass production, these machines facilitate the fast production of identical parts in large quantities, meeting the industry’s competitive and high-quality demands.
3.2 Automotive Industry
The automotive industry is another crucial sector where multi-axis CNC machines are heavily utilized. In car manufacturing, engine components, chassis elements, interior parts, and especially safety components must be machined with high precision. These parts can be both aesthetically and functionally complex.
Engine components must have properties such as high-temperature resistance and low weight. Multi-axis machines are used to process engine blocks, cylinder heads, and intricate internal mechanisms. Additionally, large and complex structures like car chassis can also be produced with high precision using these machines. Accurate machining of these parts is critical for performance and safety.
Rapid prototyping and customized designs are vital in the automotive industry. Multi-axis CNC machines ensure both speed and accuracy in prototype production. They are especially favored for quickly testing different designs and engineering changes during the development of new vehicle models. Furthermore, these machines provide efficiency-boosting solutions in cost-effective mass production processes for the automotive sector.
3.3 Medical Industry
The medical industry is a sector where multi-axis CNC machines play a critical role, particularly in the production of biomedical devices and implants. Precision and biocompatibility are of paramount importance in the medical field, which requires specially designed parts that fit human anatomy.
Multi-axis CNC machines are frequently used to manufacture body-compatible implants and prosthetics. These parts are often custom-made and anatomically designed. Multi-axis machines integrate linear and rotational movements to achieve high-precision machining for these components. Medical devices such as knee prosthetics, dental implants, and spinal devices are manufactured with exceptional precision using these machines.
Additionally, the production of microsurgical instruments, which require extremely fine and small-scale precision, is also carried out using multi-axis CNC machines. These machines’ high accuracy and specialized machining capabilities ensure that biomedical devices are safe and effective.
3.4 Defense Industry
The defense industry is a critical sector where multi-axis CNC machines are widely utilized. Components in this sector must meet high reliability, durability, and precision standards. Most parts produced for the defense industry are designed to operate under extreme conditions while delivering high performance.
Weapons components, ammunition, and other defense equipment are critical elements that require precise machining. These components include equipment essential for fighter jets, ships, tanks, and other military vehicles. Multi-axis CNC machines provide unparalleled accuracy in manufacturing such parts, ensuring reliable and precise outcomes. Specifically, optical systems and precision mechanisms are machined to meet security and accuracy needs.
Parts used in the defense industry must withstand stress tests and extreme conditions, making reliability and precision critical. Multi-axis CNC machines ensure accuracy in manufacturing these high-security standard parts, playing a crucial role in meeting the quality and performance requirements of the defense sector.

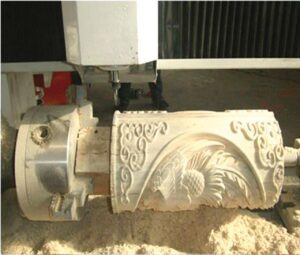

3.5 Wood and Plastic Processing
The wood and plastic processing industries benefit greatly from multi-axis CNC machines, especially for producing custom designs and decorative elements. These machines offer significant advantages in manufacturing aesthetically valuable furniture and decorative components.
Wood and plastic are relatively easy-to-process materials, but creating complex shapes and designs often requires multi-axis machines. Custom designs, decorative panels, and furniture components can be machined with high precision using these machines.
The furniture industry demands aesthetic designs and customized products. Multi-axis CNC machines make it possible to create custom designs tailored to customers’ needs. These machines improve efficiency in furniture production while also enabling the creation of unique designs.
4. Advantages of Multi-Axis CNC Controllers
Multi-axis CNC machines offer significant benefits in industrial production, improving manufacturing processes across numerous sectors. These machines enable faster, more efficient, and precise production, particularly for complex part machining requirements.
One of the most notable advantages of these machines is their ability to work with high accuracy and precision. Multi-axis CNC machines are effective for machining complex geometries, achieving micron-level precision. Their ability to move simultaneously across multiple axes allows for more intricate and precise operations.
Notably, 5-axis CNC machines can process complex geometric shapes that traditional 3-axis machines cannot. In industries like aerospace and automotive, the precision needed to machine engine parts, aerodynamic structures, or safety components is achieved with tolerances at the micron level. This precision ensures that the manufactured parts are flawless both functionally and aesthetically.
Another key advantage of multi-axis CNC machines is their ability to perform precise machining in a single setup. Thanks to their simultaneous movement across multiple axes, complex parts can be machined with just one setup. This reduces the chances of errors during the process and minimizes the number of steps required for part assembly, speeding up the process. Furthermore, this feature minimizes error probabilities and reassembly tasks during production.
4.2 More Complex Designs
Multi-axis CNC machines overcome the limitations of traditional machines by enabling the production of more complex designs. While conventional machines are typically limited to linear movements, multi-axis machines can perform linear and rotational movements simultaneously. This capability allows for the creation of more unique and functional designs.
These machines excel in handling challenging materials to create intricate structures. Materials such as titanium, aluminum alloys, composite materials, and other high-strength materials often require complex machining processes. Multi-axis CNC machines optimize movement along each axis, enabling the realization of designs that are otherwise impossible with traditional methods.
Additionally, multi-axis CNC machines can perform different operations simultaneously on various parts of a workpiece. This provides greater flexibility and efficiency in the design process. For instance, if a workpiece requires both milling and turning operations, multi-axis machines can carry out both tasks with precision at the same time. This significantly reduces production time and enhances efficiency.
4.3 Fewer Workpiece Repositions
Multi-axis CNC machines stand out for their ability to minimize the need for frequent workpiece repositioning. Traditional machines often require parts to be moved or repositioned for different operations on each axis, whereas multi-axis machines can perform multiple processes with a single setup.
Repositioning a part during production can lead to significant time loss. However, once a part is correctly positioned in a multi-axis machine, it can handle numerous operations within the same setup. This not only saves time and labor but also accelerates production processes and lowers costs. Furthermore, reduced setup times improve the overall efficiency of manufacturing.
Errors that may occur during repositioning are especially critical for the production of complex components. Multi-axis machines minimize these errors by reducing the need for part relocation. This enhances the quality of the final product while also reducing waste, resulting in a more cost-effective production process.
4.4 Increased Efficiency
Multi-axis CNC machines boost efficiency by enabling high-speed machining operations. Thanks to their ability to perform simultaneous linear and rotational movements, these machines can complete multiple functions in a single operation. This feature increases both production speed and overall capacity.
The ability to move across multiple axes simultaneously significantly shortens production times. While traditional machines operate each axis sequentially, multi-axis machines combine operation times, achieving faster results. This provides a crucial advantage in time management for industrial production.
Moreover, multi-axis machines can continuously work on the same part without interruption. This capability offers significant advantages in mass production environments. Industries such as automotive, aerospace, and medical, which demand large-scale production, benefit from the enhanced efficiency and consistent product quality provided by multi-axis machines.
5. Conclusion
Multi-axis CNC machines offer significant advantages in industrial production processes, including high precision, efficiency, speed, and flexibility. With their ability to handle complex designs and challenging materials, these machines play a vital role in modern manufacturing. Their high accuracy and multi-axis movement capabilities accelerate production processes and ensure superior quality outcomes.
In the future, the integration of artificial intelligence and digital control systems is expected to make multi-axis machines even more efficient and expand their application across various industries.
